Description

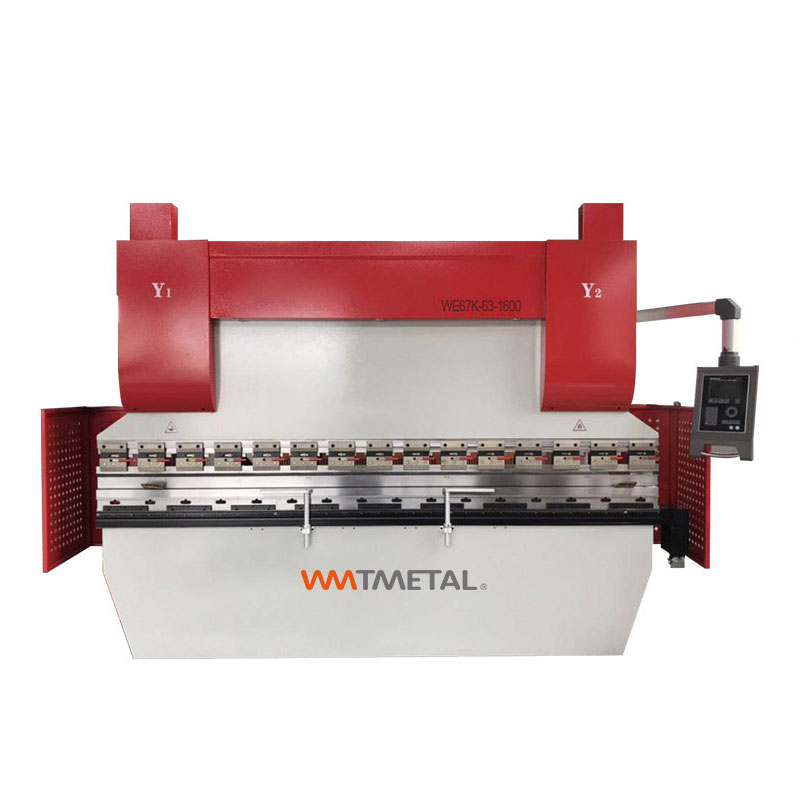

WE67K CNC sheet metal press brake has two hydraulic cylinders with an electro-hydraulic servo valve. Deflection can be compensated by a hydraulic vaulted back-off system. The back gauge mechanism can control several back gauge axes. Its frame is welded with a steel plate and is treated with annealing. Hydraulic system adopts integrated control system and imported ring seals.
It has a beautiful and simple contour.CNC system uses DA53T/DA58T/DA66T system with Chinese menu made in delem company of Holland. Sheet metalpress brakecan also be equipped with a mold fixture according to the customer s requirements.
Specification
|
Specification |
Unit |
WE67K-63/1600 |
|
Nominal pressure |
KN |
630 |
|
工作台的长度 |
mm |
1600 |
|
Distance between uprights |
mm |
1250 |
|
Height of worktable |
mm |
900 |
|
Throat depth |
mm |
400 |
|
Storke |
mm |
150 |
|
Open height |
mm |
420 |
|
Motor power |
KW |
7.5 |
|
Gear pump |
L |
16 |
|
Downward speed |
mm/s |
180 |
|
Working speed |
mm/s |
10 |
|
Return speed |
mm/s |
160 |
|
Weight |
KG |
3000 |
|
Dimension |
mm |
2100*1550*2500 |
Machine Details
Optional CNC System

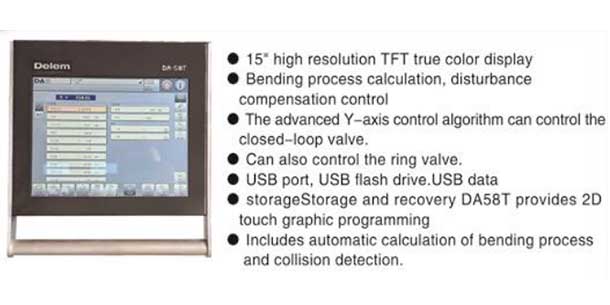

Delem DA-58T

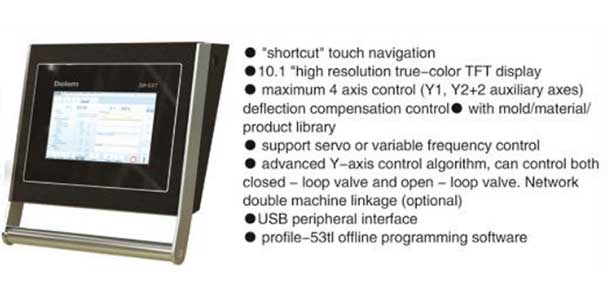

Delem DA-53T

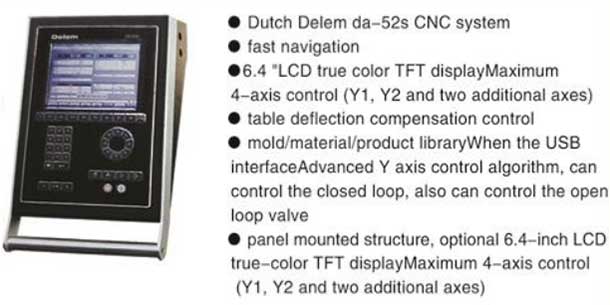

Delem DA-52S
